EYF120-18M2

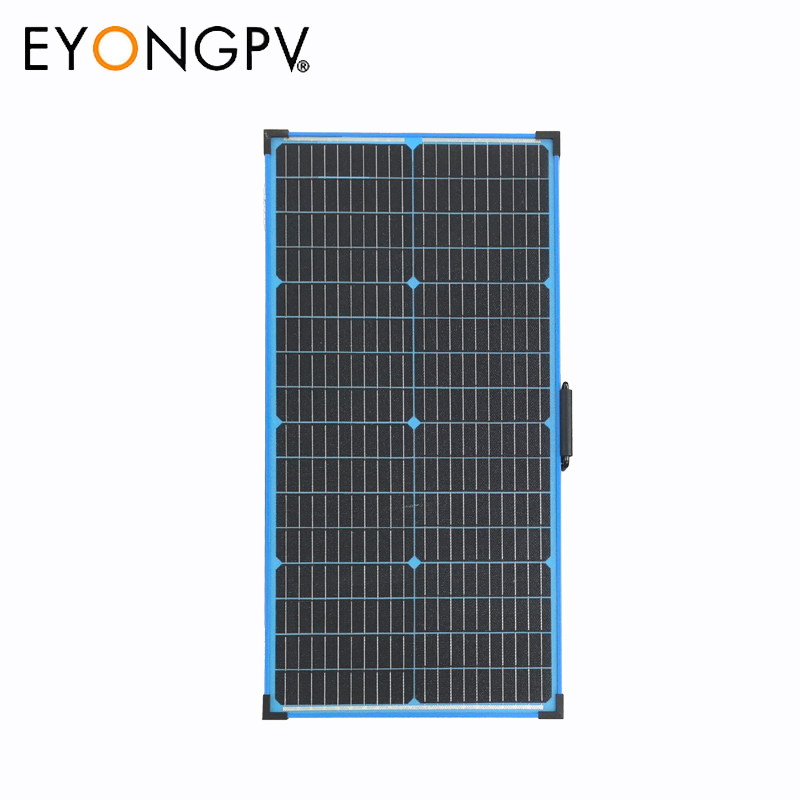

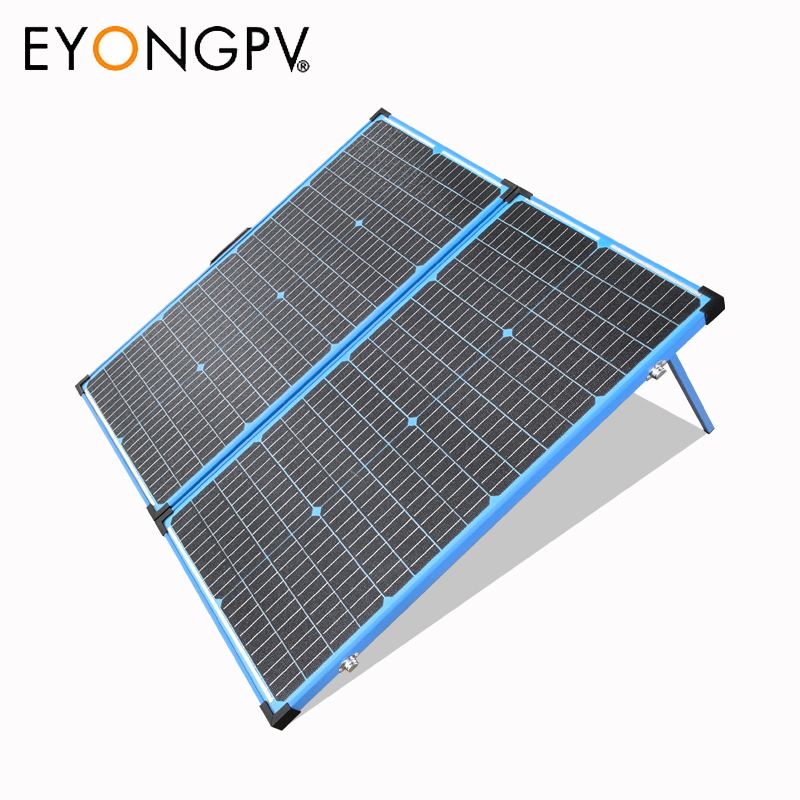

120W Monocrystalline Foldable Folding Portable ETFE Solar Panel Kit

●
Unique & Portable designs: The unique design shape used aluminum alloy shell to make it more beautiful, textural, safer than others. The better size design saves space for placement. The portable design makes the product more convenient to carry wherever.
●

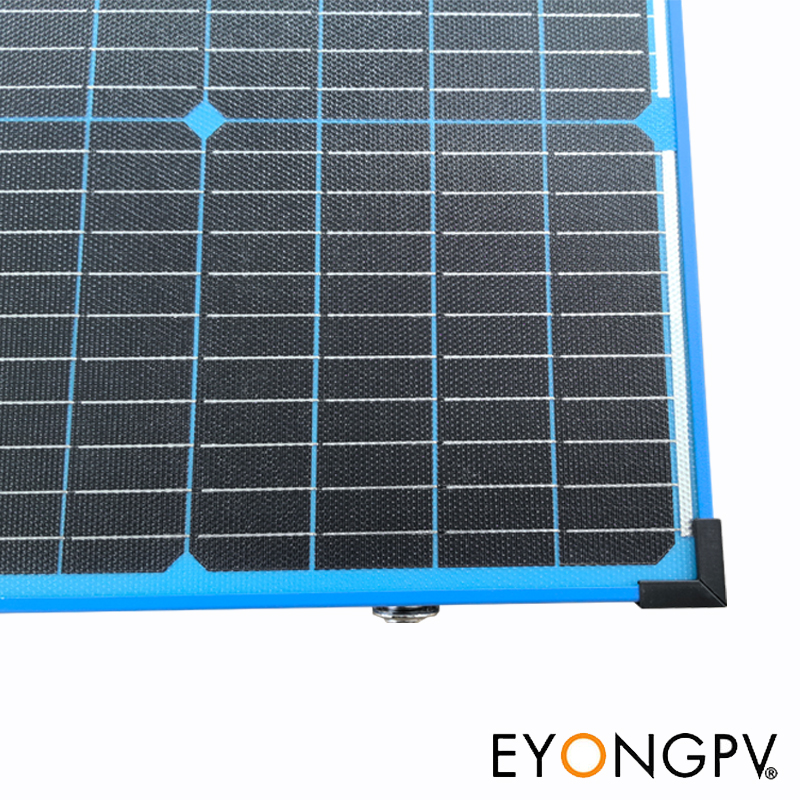

Premium ETFE film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Reinforcement design: We installed aluminium frames around the product, making it both lightweight and providing a better protective outer frame to prevent it from being damaged.
●
Lightweight : It’s a great choice where you need big power without sacrificing fuel economy, or don`t want any extra weight on your roof that may affect your center of gravity.
●
Longer service life: ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. In addition, with the addition of an aluminum frame for protection, the product becomes even more sturdy. Longer service life is for higher cost performance.
●
Widely application :It`s suitable for marine use, motorhomes, sailing, boon-docking, power stations and caravans etc.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	120W
Voltage at Maximum Power Point (Vmpp)	17.6V
Current at Maximum Power Point (Impp)	6.82A
Open Circuit Voltage (Voc)	21.2V
Short Circuit Current (Isc)	7.50A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	700V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	Monocrystalline solar cell
Cell Size	182 x 182mm
Opened Size	795 x 790 x 25mm

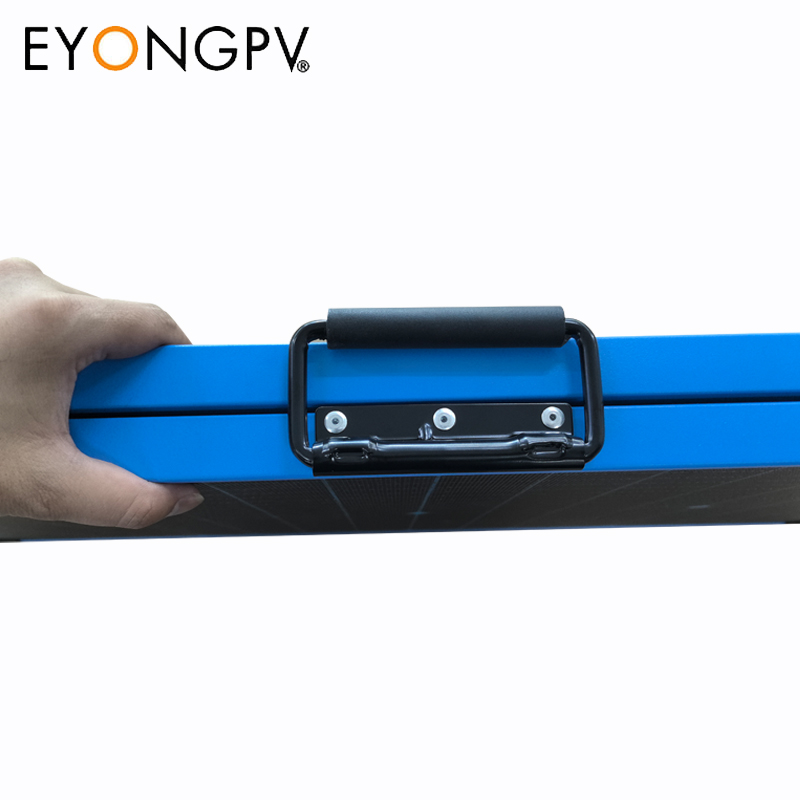

Folded size	395 x 790 x 60mm
No. of Folding	2 = 1 x 2
Weight	4.2KG

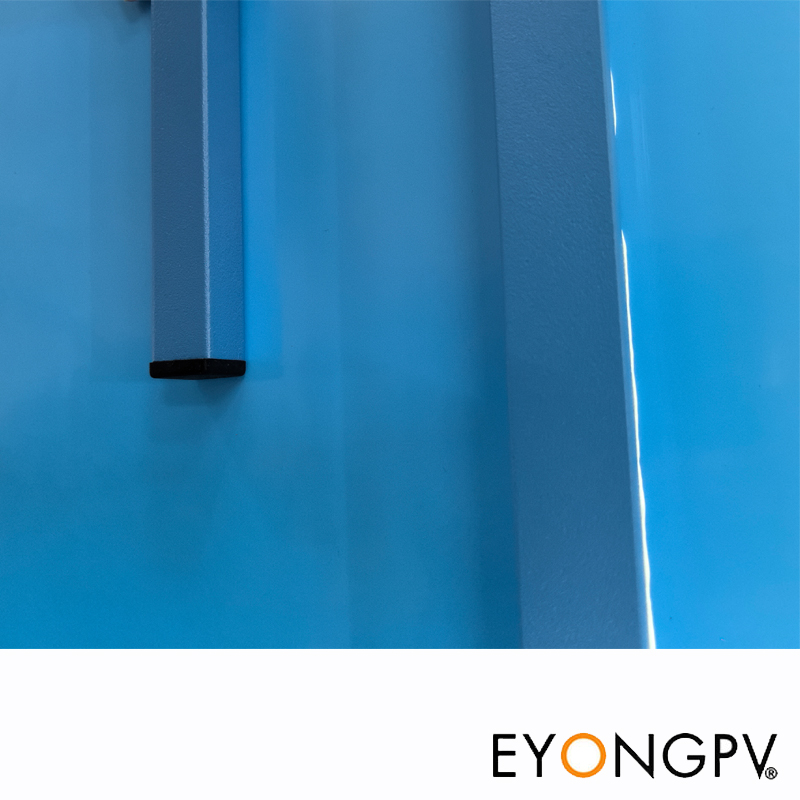

Frame	Anodized aluminum alloy type 6063 (silver)
Surface Material	High performance corrosion resistant ETFE

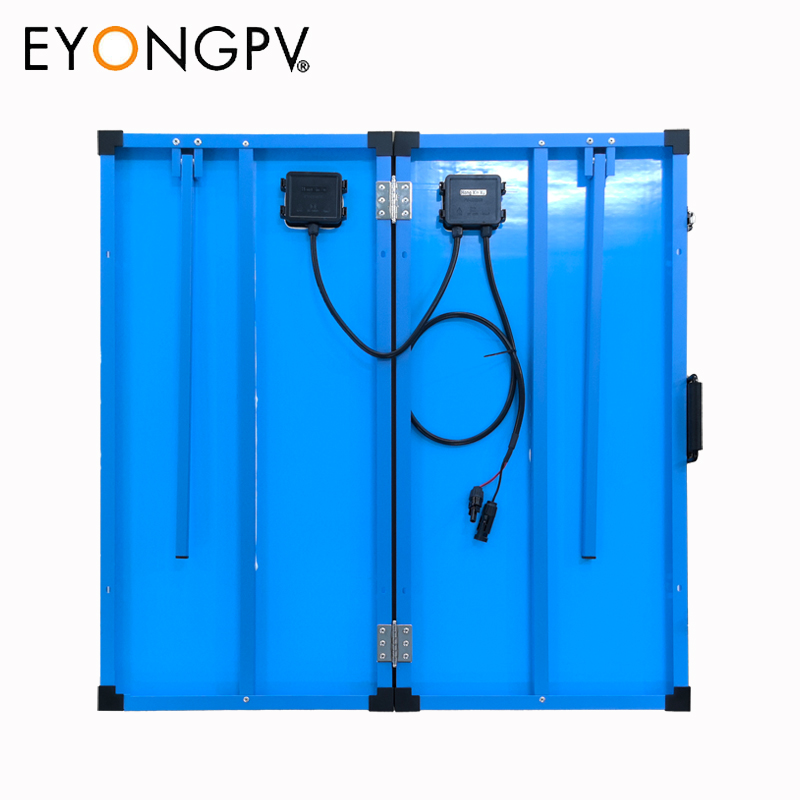

Junction Box	IP67 Rated
Type of Connector	MC4

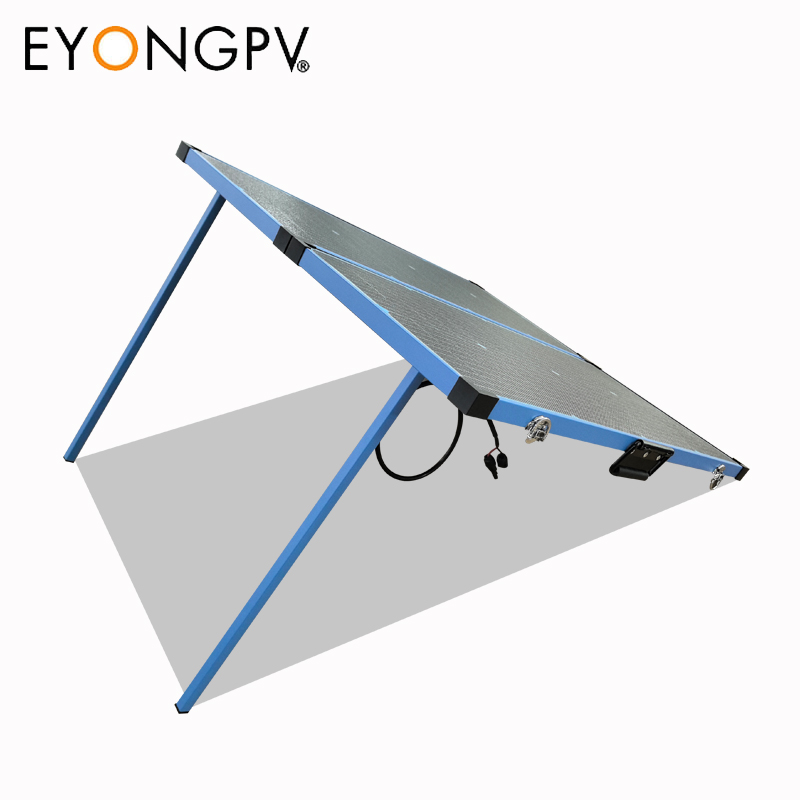

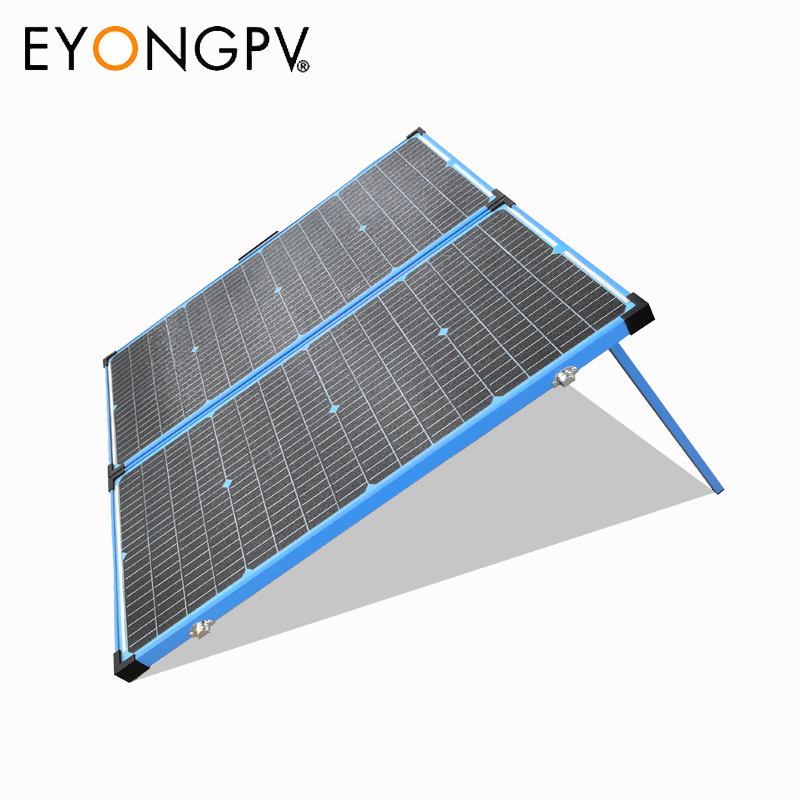

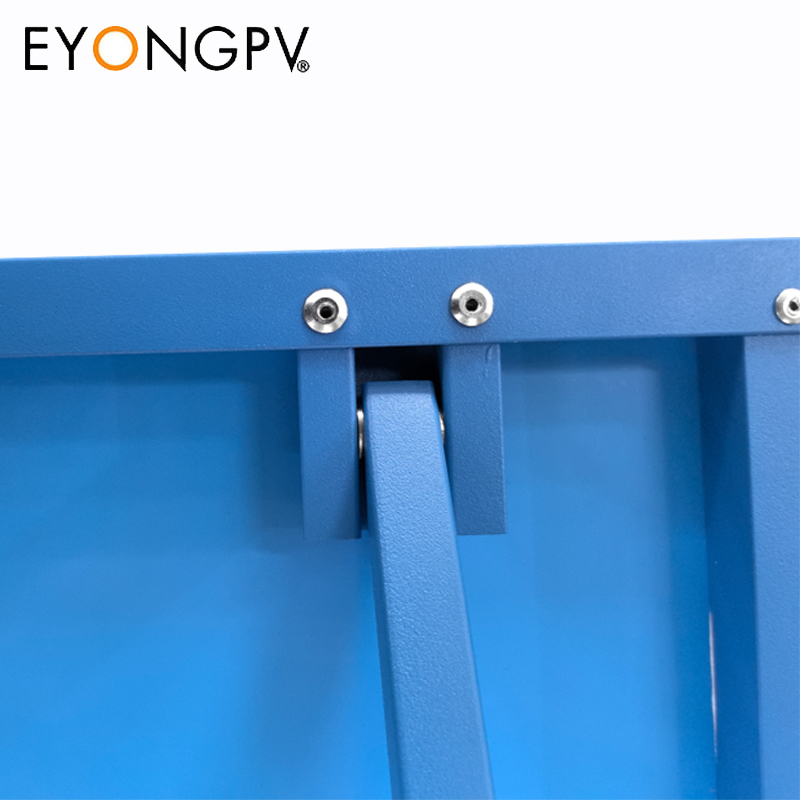

More functions	Kickstands
Certifications	CE, FCC, ROHS, REACH
